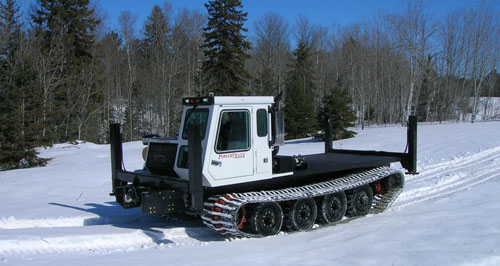

 PowerTraxx 15H Utility Tracked Vehicle
PowerTraxx 15W-H utilizes a strengthened and heavily reinforced frame that is widened for added stability. This vehicle comes standard as hydrostatically rear driven and rides along 40” wide D-dent tracks. The option of front drive is available, and creates more choices for devices such as elevator units that can be sunk into the frame to reduce traveling heights. Powering this unit is a Cummins® electronic diesel engine that provides an incredible 275 hp, powerful enough to move this unit through the most extreme terrain and conditions.
Main Dimensions
| Overall length |
300″ |
| Overall Width |
126″ |
| Overall Height |
114″ |
| Ground Clearance |
17” |
Weights
| Basic Vehicle Weight |
26,000 lb |
| Capacity |
30,000 lb |
| Gross Vehicle Weight |
56,000 lb |
| Ground Pressure – Unloaded |
1.98 psi |
| Ground Pressure – Loaded |
3.90 psi |
Performance
| Max speed @2200 rpm |
8 mph |
| Turning radius inside |
0” |
| Fording depth |
48” |
| Climbing grade |
60 % |
| Side hill ability |
40 % |
Standard Engine
| Type |
Cummins QSl, Tier 3 |
| Capacity |
8.3 Litres |
| Horse Power |
275 @ 2100 RPM |
| Electrical System |
12V |
| Fuel tank capacity |
60 US Gal |
Drive System
| Type |
Hydrostatic |
| Steering control |
Single Joystick, electronic |
| Location |
Front or Rear |
| Pump Drive |
Funk, Triple Pad, Series 28000 |
| Hydrostatic Pumps |
Sauer 90 Series, 90cc,
Variable Displacement |
| Hydrostatic Motors |
Sauer 51 Series, 160cc,
Two (2) Speed, Variable Displacement
|
| Planetaries |
Fairfield W12D |
| Drive Sprocket |
14 Tooth, Steel Hub Sprocket,
Replaceable Urethane |
| Idler Sprocket |
14 Tooth, Steel Hub Sprocket,
Replaceable Urethane |
Suspension
| Type |
Heavy Duty Arched Walking Beams Solid Steel, Urthane Bushings |
| Load Wheels |
825 x 20, Solid Rubber Tire, 3 Piece Steel Rim |
Tracks
| Type |
Rubber with Steel Grousers |
| Belts |
15″ x 6 ply, Goodyear Rubber |
| Bars |
D-Dent, 40″ x 1/2″, Heavy Duty |
| Reinforcing Bar |
Optional |
Electronics
| Alternator |
160 Amp |
| Batteries |
2 x 200 Amp Hour, 1125 CCA |
| Starter |
4.8 kW, 12 V |
| Driving Lights |
2 Forward, 2 Rear |
| Other |
Back-Up Alarm, Master Switch |
Operator’s Compartment
| Type |
1 person enclosed ROPS 60,000 lbs |
| |
Single seat with seat belt |
| |
Front and rear wiper/washer |
| |
Side sliding window |
| |
Panel and dome lights, sunroof / escape hatch |
| Heater |
40,000 BTU with Adjustable Defrosters |
| Instruments |
Engine oil pressure, engine temp, hydrostatic oil temp, voltmeter, hour meter, fuel, tachometer |
| Manuals |
2 Parts, 2 Maintenance |
Optional Equipment
- Stretched Frame (15SW-H) – Specs (PDF)
- Cold Weather Package
- Steel Flat Track
- Rubber Covered Flat Track
- Air Conditioning
- Front Winch
- Dual Lever Steering
- Digital Inclinometer
- Other Options Available Upon Request
