 PowerTraxx 08L-H Utility Tracked Vehicle
PowerTraxx 08L-H, a mid-size hydraulically driven track vehicle specially designed for medium sized digger-derricks and aerial devices. With 17,000 lbs. payload capacity spread
across 33” wide D-dent tracks accompanied by a light yet robust frame and suspension, the 08L-H has what it takes to get the job done. A 230 hp Cummins® diesel engine and hydrostatic drive system manoeuvres this unit through any terrain and conditions that stand in its way.
Main Dimensions
| Overall length |
252″ |
| Overall Width |
102″ |
| Overall Height |
102″ |
| Ground Clearance |
17” |
Weights
| Basic Vehicle Weight |
16,000 lb |
| Capacity |
17,000 lb |
| Gross Vehicle Weight |
33,000 lb |
| Ground Pressure – Unloaded |
1.77 psi |
| Ground Pressure – Loaded |
3.39 psi |
Standard Engine
| Type |
Cummins QSB, Tier 3 |
| Capacity |
6.7 Litres |
| Horse Power |
230 @ 2200 RPM |
| Electrical System |
12V |
| Fuel tank capacity |
40 US Gal |
Drive System
| Type |
Hydrostatic |
| Steering control |
Single Joystick, electronic |
| Location |
Rear |
| Pump Drive |
Funk, Triple Pad, Series 28000 |
| Hydrostatic Pumps |
Sauer 90 Series, 90cc,
Variable Displacement |
| Hydrostatic Motors |
Sauer 51 Series, 160cc,
Two (2) Speed, Variable Displacement
|
| Planetaries |
Fairfield W12D |
| Speed |
8 MPH |
| Drive Sprocket |
14 Tooth, Steel Hub Sprocket,
Replaceable Urethane |
| Idler Sprocket |
12 Tooth, Steel Hub Sprocket,
Replaceable Urethane |
Suspension
| Type |
Heavy Duty Arched Walking Beams Solid Steel, Urthane Bushings |
| Load Wheels |
650 x 16, Solid Rubber Tire, 3 Piece Steel Rim |
Tracks
| Type |
Rubber with Steel Grousers |
| Belts |
12″ x 6 ply, Goodyear Rubber |
| Bars |
D-Dent, 33 ” x 1/2″, Heavy Duty |
| Reinforcing Bar |
Optional |
Electronics
| Alternator |
160 Amp |
| Batteries |
2 x 200 Amp Hour, 1125 CCA |
| Starter |
4.8 kW, 12 V |
| Driving Lights |
2 Forward, 2 Rear |
| Other |
Back-Up Alarm, Master Switch |
Operator’s Compartment
| Type |
1 person enclosed ROPS 45,000 lbs |
| |
Single seat with seat belt |
| |
Front and rear wiper/washer |
| |
Side sliding window |
| |
Panel and dome lights, sunroof / escape hatch |
| Heater |
40,000 BTU with Adjustable Defrosters |
| Instruments |
Engine oil pressure, engine temp, hydrostatic oil temp, voltmeter, hour meter, fuel, tachometer |
| Manuals |
2 Parts, 2 Maintenance |
Optional Equipment
- Cold Weather Package
- Steel Flat Track
- Rubber Covered Flat Track
- Air Conditioning
- Front Winch
- Dual Lever Steering

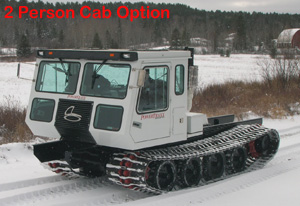

- Two Person Cabin
- Other Options Available Upon Request
